Getting Started

Getting Started#

This short tutorial covers a basic use case for ott:

  • Compute an optimal coupling between two point clouds. The problem is first described using a PointCloud geometry object, storing those point clouds coordinates and their pairwise costs. The problem is then fed to a Sinkhorn solver to output various quantities and variables of interest.

  • Showcase the seamless integration with jax, to differentiate through the regularized OT distance outputted by the solver, and plot the gradient flow of that distance, so that the first point cloud approaches the second in Wasserstein distance sense.

Imports and toy data definition#

import jax
import jax.numpy as jnp

import matplotlib.pyplot as plt

from ott.geometry import pointcloud
from ott.solvers import linear

ott is built on top of jax, so we use jax.numpy arrays to instantiate all variables. We generate two 2-dimensional random point clouds of \(7\) and \(11\) points, respectively, and store them in variables x and y:

rngs = jax.random.split(jax.random.key(0), 2)
d, n_x, n_y = 2, 7, 11
x = jax.random.normal(rngs[0], (n_x, d))
y = jax.random.normal(rngs[1], (n_y, d)) + 0.5

Because these point clouds are 2-dimensional, we use scatter plots to display them.

x_args = {"s": 100, "label": r"source $x$", "marker": "s", "edgecolor": "k"}
y_args = {"s": 100, "label": r"target $y$", "edgecolor": "k", "alpha": 0.75}
plt.figure(figsize=(9, 6))
plt.scatter(x[:, 0], x[:, 1], **x_args)
plt.scatter(y[:, 0], y[:, 1], **y_args)
plt.legend()
plt.show()
../_images/3770786afc73993b4c093759dca219a920c8b0f0696dcf3dcd34c5f93fa22fca.png

Optimal transport with ott#

We use ott to compute the optimal transport between x and y. To do so, we first create a geom object that stores the geometry (a.k.a. the ground cost) between x and y:

geom = pointcloud.PointCloud(
    x, y, cost_fn=None, epsilon=0.01, relative_epsilon="std"
)

geom holds the two datasets x and y, as well as a cost_fn, a function used to quantify a cost between two points. Here, we passed no cost_fn; this defaults to cost_fn equal to SqEuclidean, the squared-Euclidean distance between two points, \(c(x,y)=\|x-y\|^2_2\).

In order to compute the optimal coupling corresponding to geom, we use the Sinkhorn algorithm, wrapped in the convenience wrapper solve().

The Sinkhorn algorithm will use a regularization hyperparameter epsilon, which is typically of the scale of \(c(x,y)\) found across point-clouds. For this reason, ott stores that parameter in geom, and uses by default the twentieth of the standard deviation of the cost matrix between all points in x and y.

While it is also possible to set probability weights a for each point in x (and b for y), these will default to uniform by default when not passed, here \(1/7\) and \(1/13\), since \(n=7\) and \(m=13\).

solve_fn = jax.jit(linear.solve)
ot = solve_fn(geom)

As a small note: we have jitted the solver function, and we encourage you to do so whenever possible. This means that the second time the solver is run, it will be much faster, as long as the shapes of x and y do not vary.

ot = solve_fn(geom)

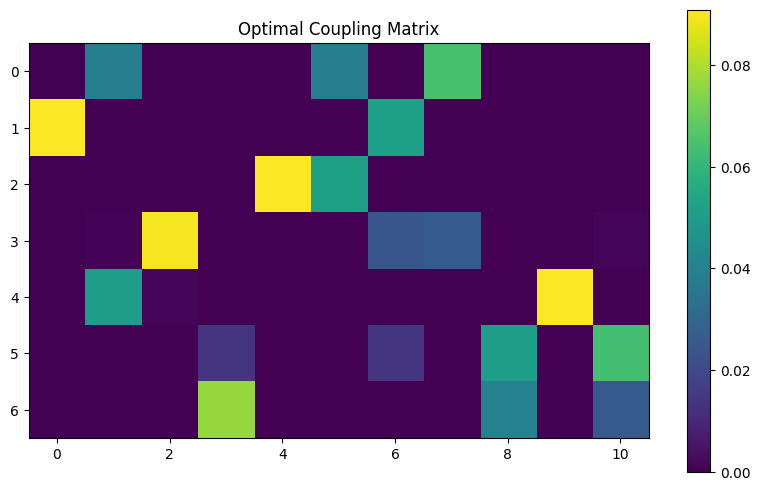

The output object ot contains the solution of the optimal transport problem. This includes the optimal coupling matrix, that indicates at entry [i, j] how much of the mass of the point x[i] is moved towards y[j].

plt.figure(figsize=(10, 6))
plt.imshow(ot.matrix)
plt.colorbar()
plt.title("Optimal Coupling Matrix")
plt.show()
../_images/7896d1fb3160f354220bbc88437f9189fd27ab9d76304347579125034f604300.png

ot is a SinkhornOutput object that stores many more things, notably a lower, as well as an upper bound of the “true” Wasserstein distance between x and y (the gap between these two bounds can be made arbitrarily small as epsilon decreases, when geom is instantiated).

print(f"OT Cost, lower bound = {ot.dual_cost:3f}, upper = {ot.primal_cost:3f}")

OT Cost, lower bound = 2.209107, upper = 2.339590

Automatic differentiation using jax#

We finish this quick tour by illustrating one of the features of ott: it can be seamlessly integrated into differentiable, end-to-end architectures built using jax (see also Sinkhorn Divergence Hessians) for an example exploiting unrolling or implicit differentiation).

We provide a simple use-case where we differentiate the (regularized) OT transport cost w.r.t. x, by defining a wrapper that takes x and y as input, to output their regularized OT cost.

def reg_ot_cost(x: jnp.ndarray, y: jnp.ndarray) -> float:
    geom = pointcloud.PointCloud(x, y)
    ot = solve_fn(geom)
    return ot.reg_ot_cost

Obtaining the gradient function of reg_ot_cost is as easy as making a call to jax.grad() on reg_ot_cost, e.g. jax.grad(reg_ot_cost).

We use jax.value_and_grad() below to also store the value of the output itself. Note that by default, JAX only computes the gradient w.r.t the first of variable of reg_ot_cost , here x.

# value and gradient *function*
r_ot = jax.value_and_grad(reg_ot_cost)
# evaluate it at `(x, y)`.
cost, grad_x = r_ot(x, y)
assert grad_x.shape == x.shape

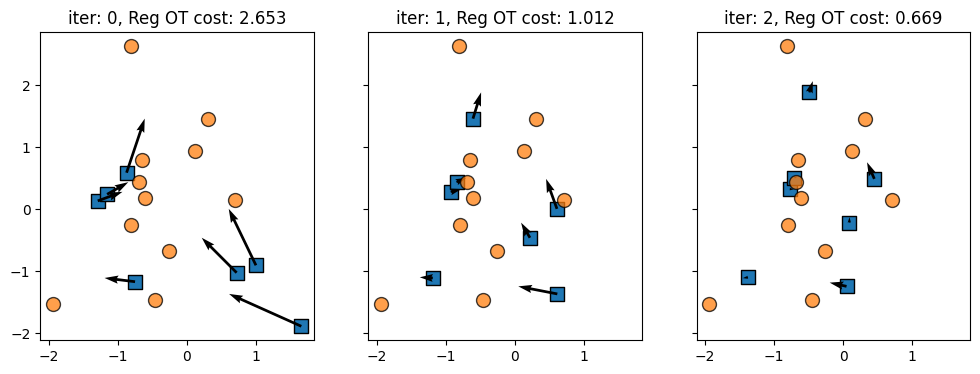

grad_x is a matrix that has the same size as x. Updating x with the opposite of that gradient decreases the loss. This process can done iteratively, following a gradient flow, to push x closer to y.

step = 2.0
x_t = x
quiv_args = {"scale": 1, "angles": "xy", "scale_units": "xy", "width": 0.01}
f, axes = plt.subplots(1, 3, sharey=True, sharex=True, figsize=(12, 4))

for iteration, ax in enumerate(axes):
    cost, grad_x = r_ot(x_t, y)
    ax.scatter(x_t[:, 0], x_t[:, 1], **x_args)
    ax.quiver(
        x_t[:, 0],
        x_t[:, 1],
        -step * grad_x[:, 0],
        -step * grad_x[:, 1],
        **quiv_args,
    )
    ax.scatter(y[:, 0], y[:, 1], **y_args)
    ax.set_title(f"iter: {iteration}, Reg OT cost: {cost:.3f}")
    x_t -= step * grad_x
../_images/f15e2dfba8403087c2d27e38036407c7d667a2265cb4d1189eae8f8bfd2c3e61.png

Going further#

This tutorial gave you a glimpse of the most basic features of ott and how they integrate with jax. ott implements many more functionalities, that are described in the following tutorials:
